High pressure mercury lamp , HRL 1000W/230/E40, Radium

High pressure mercury vapour lamp with elliptical bulb, coated, base E40. Operation with ballast, no ignitor required.

Lamp power 1,000.0 W
Lamp nominal wattage 1 kW
Rated lamp luminous flux 57000 lm
Color temperature 4000 K

SKU: 32209003 Categories: Brands, Discharge lamps, Lamp, Lamp and Tube, Mercury vapor lamp E40 socket, Mercury vapor lamps, Radium

Description
Reviews (0)

General Data

Article No 32209003

Code HRL 1000W/230/E40

Product EAN 4008597090035

Box quantitiy (pcs.) 6

EAN Box 4008597490033

Gross weight of box in kg 3.8

Length of box in m 0.54

Width of box in m 0.38

Height of box in m 0.43

Product weight 527 g

Electric Parameters

Rated wattage 1000.0 W

Lamp nominal wattage 1 kW

Mains voltage 230 V

Nominal current (A) 7.5 A

Nominal choke current 7.5 A

Compensation capacitor for 50Hz operation 60 µF

Running up current max 140%

Fuse Daelay-action; min. double nominal current

dimmable No

Controllable (in suitable circuit)up to 50% (run-up at nominal power)

Light Application Parameters

Luminous flux 57000 lm

Rated lamp luminous flux 57000 lm

Luminous efficiency 57 lm/W

Colour temperature 4000 K

Color rendering index 43

Service Life

Average nominal lifespan 20000 h

Mean service life 5000 h

Specification

Energy efficiency class G

Energylabel A++ to E B

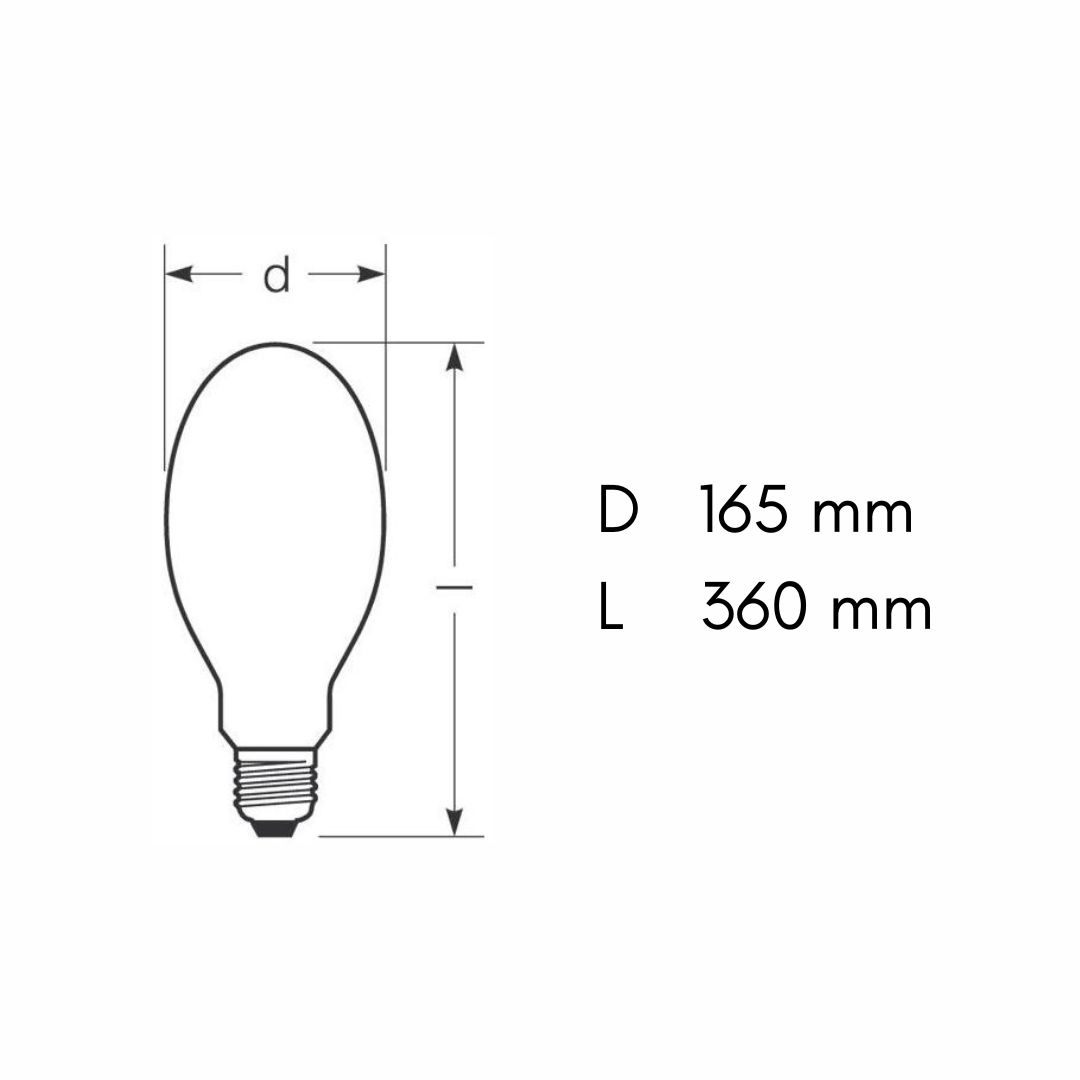

Diameter 165 mm

Length max. 360 mm

Total length 355 mm

Burning positionhs 30

Mercury content 78.5 mg

Lamp shape Ellipsoid

Base E40
