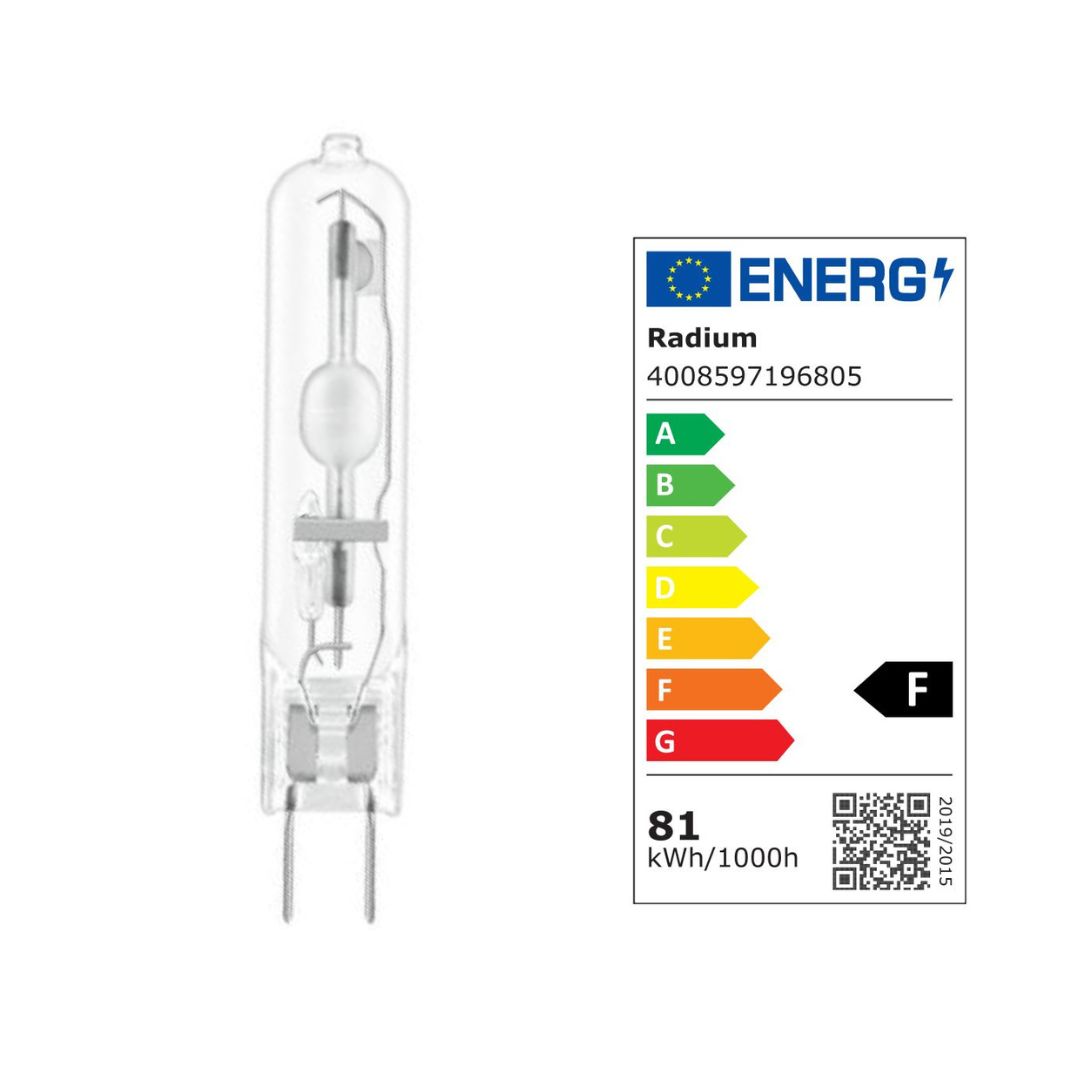

Lamp Metal halide ceramic burner, RCC-TC 70W/WDL/230/G8.5, Radium

Mini MH lamp with ceramic burner, tubular bulb clear, light colour WDL, base G8.5. Operation in enclosed luminaire, with ballast and ignitor.

Lamp power 70.0 W
Rated lamp luminous flux 7900 lm
Color temperature 3000 K
Average life 18000 h
Lamp shape Tube, single-ended

SKU: 32419680 Categories: Brands, Lamp, Lamp and Tube, Metal halide lamps, Metal halide lamps G8.5 socket, Radium

Description
Reviews (0)

General Data

Article No 32419680

Code RCC-TC 70W/WDL/230/G8.5

Product EAN 4008597196805

Box quantitiy (pcs.) 12

EAN Box 4008597496806

Gross weight of box in kg 0.215

Length of box in m 0.12

Width of box in m 0.08

Height of box in m 0.14

Product weight 9 g

Electric Parameters

Rated wattage 73.0 W

Weighted energy consumption in 1,000 hours 81 kWh

Lamp voltage 85 V

Mains voltage 230 V

Ignition voltage 3.6 up to 5.0

Lamp’s nominal current 0,86 A

Light Application Parameters

Luminous flux 7900 lm

Rated lamp luminous flux 7900 lm

Luminous efficiency 108 lm/W

Radium light colour warm white de luxe

Code of light color 930

Colour temperature 3000 K

Colour rendering index CRI 90-100

Lumen maintenance at 2000h 0.96

Lumen maintenance at 4000h 0.93

Lumen maintenance at 6000h 0.9

Lumen maintenance at 8000h 0.87

Lumen maintenance at 12000h 0.8

Lumen maintenance at 16000h 0.75

Lumen maintenance at 20000h 0.73

Service Life

Average nominal lifespan 18000 h

Lamp survival factor at 4000h 1.00

Lamp survival factor at 6000h 1.00

Lamp survival factor at 8000h 0.98

Lamp survival factor at 12000h 0.9

Lamp survival factor at 16000h 0.67

Lamp survival factor at 20000h 0.67

Specification

Energy label notice old label, no EPREL registration, no EU data sheet

Energy Label A to G F

Energylabel A++ to E A+

Diameter 15 mm

Length max 85 mm

Total length 85 mm

Burning position h 180

Mercury content 5.4 mg

Lamp shape Tube, single-ended

Model Clear

BaseG 8.5

Colour White
