GENERAL DATA

– Item No. 43319515
– Code RL-PAR16 50 DIM 940 / WFL
– Product EAN  008597195150
– Customs tariff no.   85395000
– Box quantity (pcs.)  10e
– Box EAN 4008597495151
– Gross weight of the box in kg    0.6
– Box length in m     0.26
– Box width in m   0.11
– Box height in m  0.07
– ETIM class   EC001959

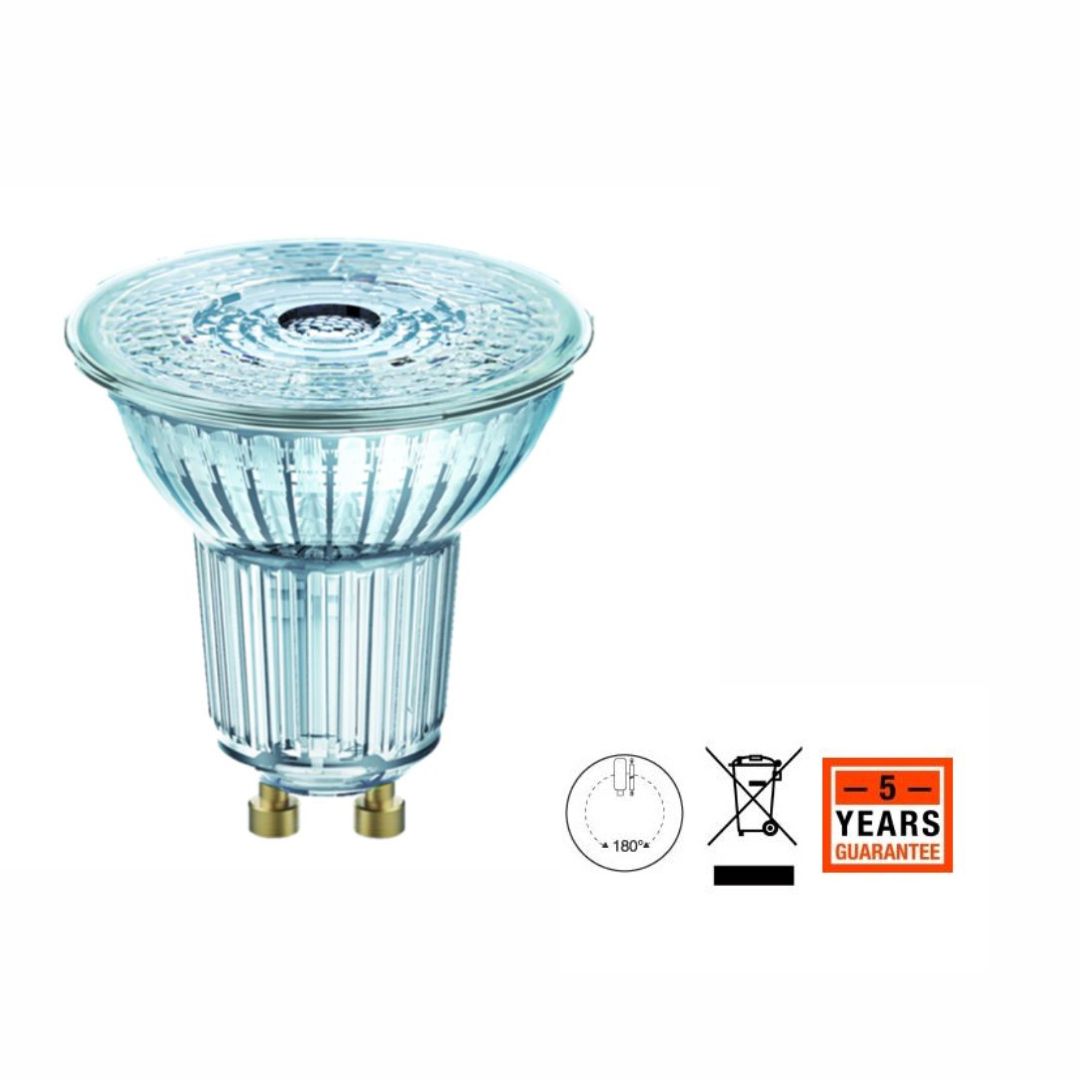

– ETIM class name    LED / Multi-LED lamp
– Product status   Phase-out

Electrical parameters

– Nominal power  5.9 W
– Nominal power 5.9 W
– Weighted energy consumption in 1000 hours   5.9 kWh
– Power factor  > 0.8
– Nominal voltage 220 to 240 V.
– Voltage type    AC
– Nominal current (mA)  32 mA
– Dimmable   Yes

Light application parameters

– Nominal luminous flux lamp power 350 lm
– Luminous flux in a 90 ° sector     350 lm
– Luminous intensity   720 cd
– Beam angle   36 °
– Luminous efficacy  59.32 lm / W
– Color temperature     4000 K.
– Color rendering index Ra   ≥ 90
– Color stability   ≤ 5 sdcm

Service life

– Average service life  25,000 hours
– Average nominal service life 15,000 hours
– No. switching cycles 100,000
– Lamp survival factor at 6000h   ≥ 0.90
– Early failure rate at 1000h   ≤ 5.0%

Specification

– Energy label from 2013 A +
– Max. diameter  51 millimeter
– Diameter    51 millimeter
– Max. length  55 millimeter
– Length 55 millimeter
– Lamp shape    Reflector
– Finish     Glass
– Base  GU10
– Color  White

Notes on operation

– Degree of protection (IP)    IP20
– Ambient temperatures    -20 to + 40 ° C
– Operation in the ambient temperature range -20 to + 40 ° C
