General data

Radium code   43619244
Designation    RL-MR11 35 827/WFL
EAN 10 (unit)    4008597192449
Customs tariff number  85395200
Transport unit (pieces)10
EAN 40 (box)   4008597492440
Gross weight of the box in kg 0.248
Length of the box in m 0.19
Width of the box in m    0.08
Height of the box in m    0.06
ETIM class     EC001959
ETIM class designation     LED lamp

Electrical parameters

Nominal power  4 W
Rated field lamp power  4.0 W
Weighted energy consumption for 1,000 hours  5 kWh
Power factor    > 0.50
nominal voltage   12-12 V
voltage type   AC
nominal current    500-500 mA
Nominal current (mA)    500 mA
max. no. of Lps with 16A circuit breaker (B) with ballast (BE, BC without capacitor) / on mains 44
max. no. of Lps with circuit breaker 10A (B) with ballast (BE, BC without capacitor) / on mains 27
Dimmable     no

Lighting parameters

Luminous flux   345 lm
Luminous flux of the lamp in the assigned field   345 lm
Nominal luminous flux   345 lm
Luminous flux in 90° mains    345 lm lm
Luminous flux in 120° mains    345 lm lm
Luminous intensity    600 cd
Beam angle  36 °
Luminous efficacy     86 lm/W
Colour temperature    2700 K
Colour rendering index Ra     ≥ 80
Colour rendering index Ra nominal   80-89
Colour stability  ≤ 6 sdcm

Service life

Average nominal service life   15000 h
Average service life  15000 h
Number of cycles on/off  100000
Survival factor after 6000h  ≥ 0.90
Early derating at 1000h      ≤ 5.0 %
Warranty up to  4 years

Specification

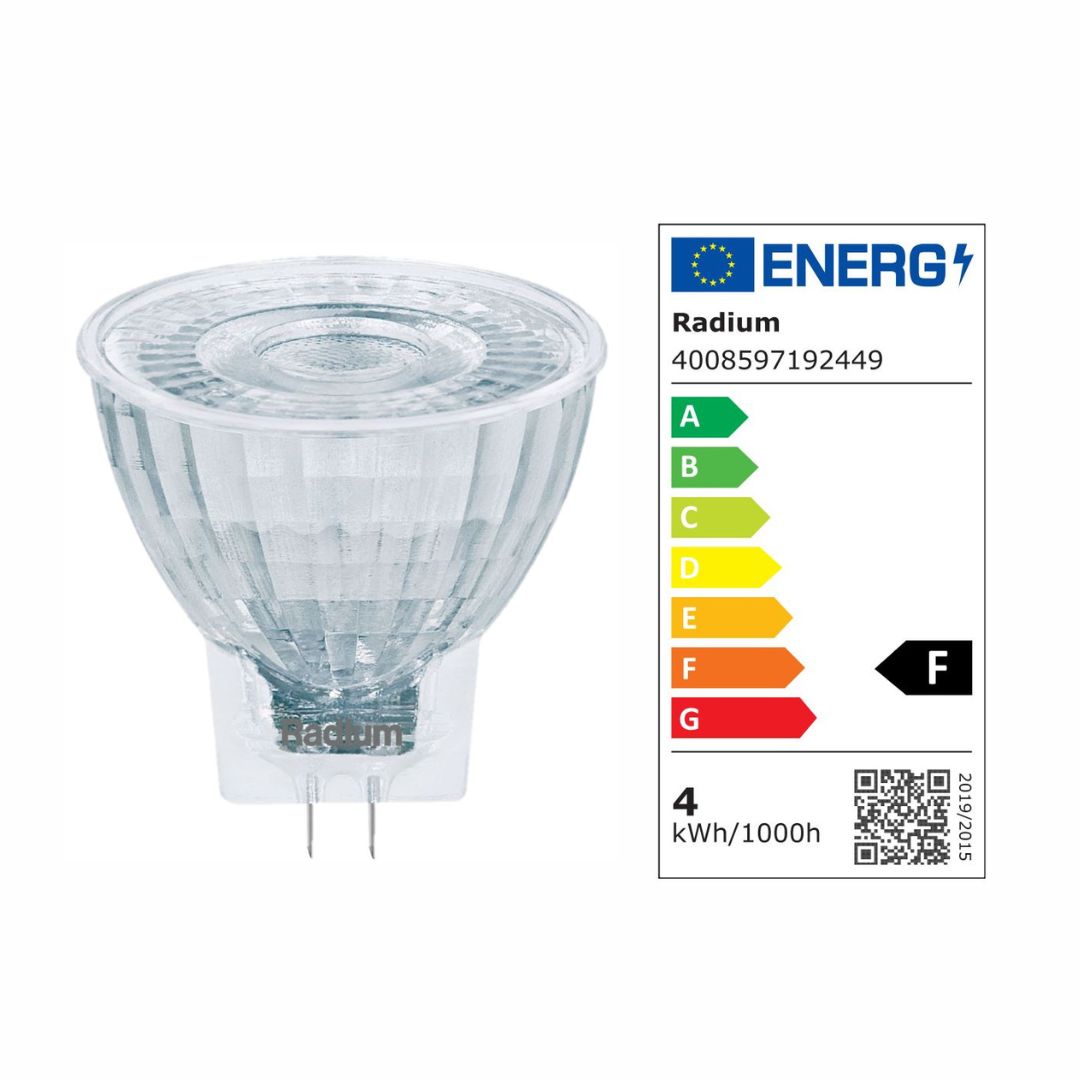

Energy label A to G    F
Energy label A++ to E    A+

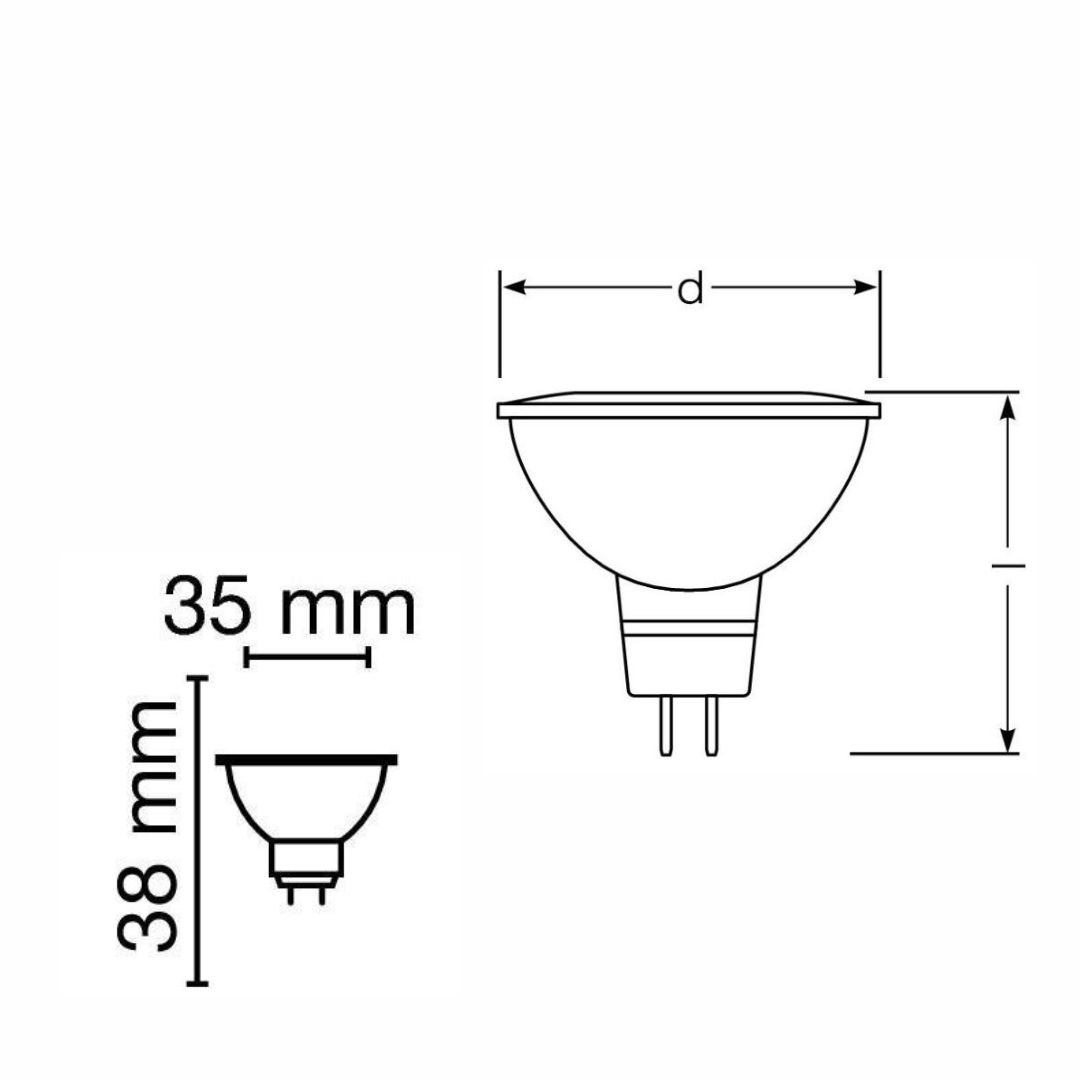

diameter   35 mm
Max. total length  38 mm mm
length  38 mm
length    38 mm
Operating position     any
Mercury content  0.0 mg
Lamp shape  reflector
Cap     GU4
color   white

Operating instructions

Protection class (IP) IP20
Operating position  any
Ambient temperature range    -20°… +40° C
