Logistics data

– Radium Code  42919076

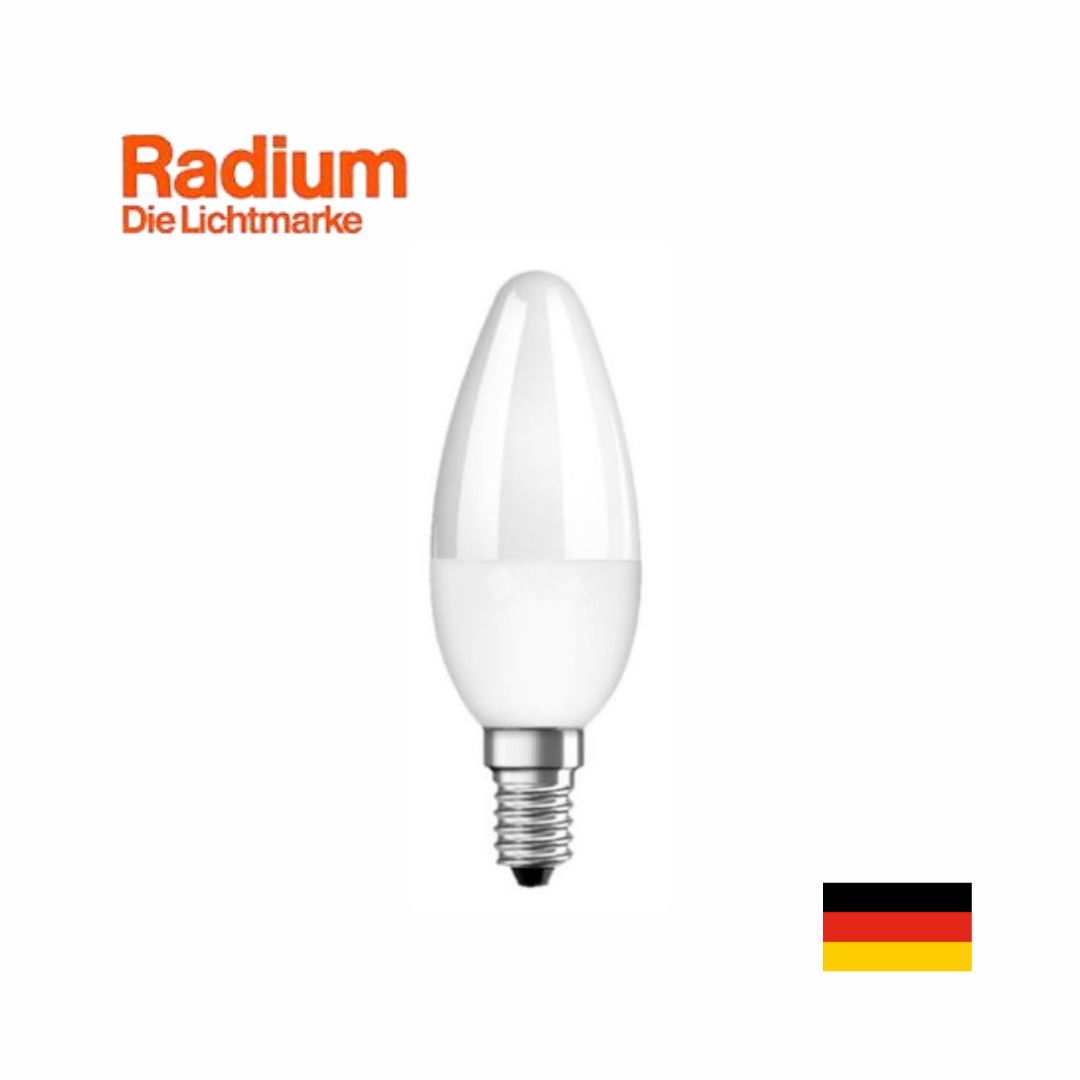

– Designation  RL-C40 DIM 827/F/E14
– EAN 10 (unit)  4008597190766
– Customs tariff number    85395000
– Transport unit (pieces) 10
– EAN 40 (carton) 4008597490767
– Gross weight of the carton in kg 0.778
– Box length in m 0.21
– Box width in m   0.09
– Box height in m 0.12
– ETIM class   EC001959
–  ETIM class designation  LED lamp

Electrical parameters

–  Rated field lamp power   5.5 W
–  Weighted energy consumption for 1,000 hours  6 kilowatt-hour
–  Power factor 0.5
–  Voltage type   AC
–  Rated current (mA)  30 milliampere

Lighting parameters

–  Luminous flux of the lamp in rated field   470 lumen
–  Luminous flux in 90° sector 470 lumen
–  Beam angle  … 78.33 lumen/watt
– Color temperature 2700 kelvin
– Color rendering index Ra   80
– Color stability    ≤ 6 sdcm

Lifetime

– Average life  25000 h
– Number of on/off cycles    100000
– Survival rate after 6000h  ≥ 0.90
– Early degradation at 1000h ≤ 5.0 %

Specification

– Max. diameter     35 mm
– Max. total length  102 mm
– length   102 millimeter
– Mercury content  0.0 mg
– Dimmable yes
– lamp shape   ebougie

Operating instructions

–  Ambient temperature range -20°… + 40° C
–  Ambient operating temperature range  -20°… +40° C
