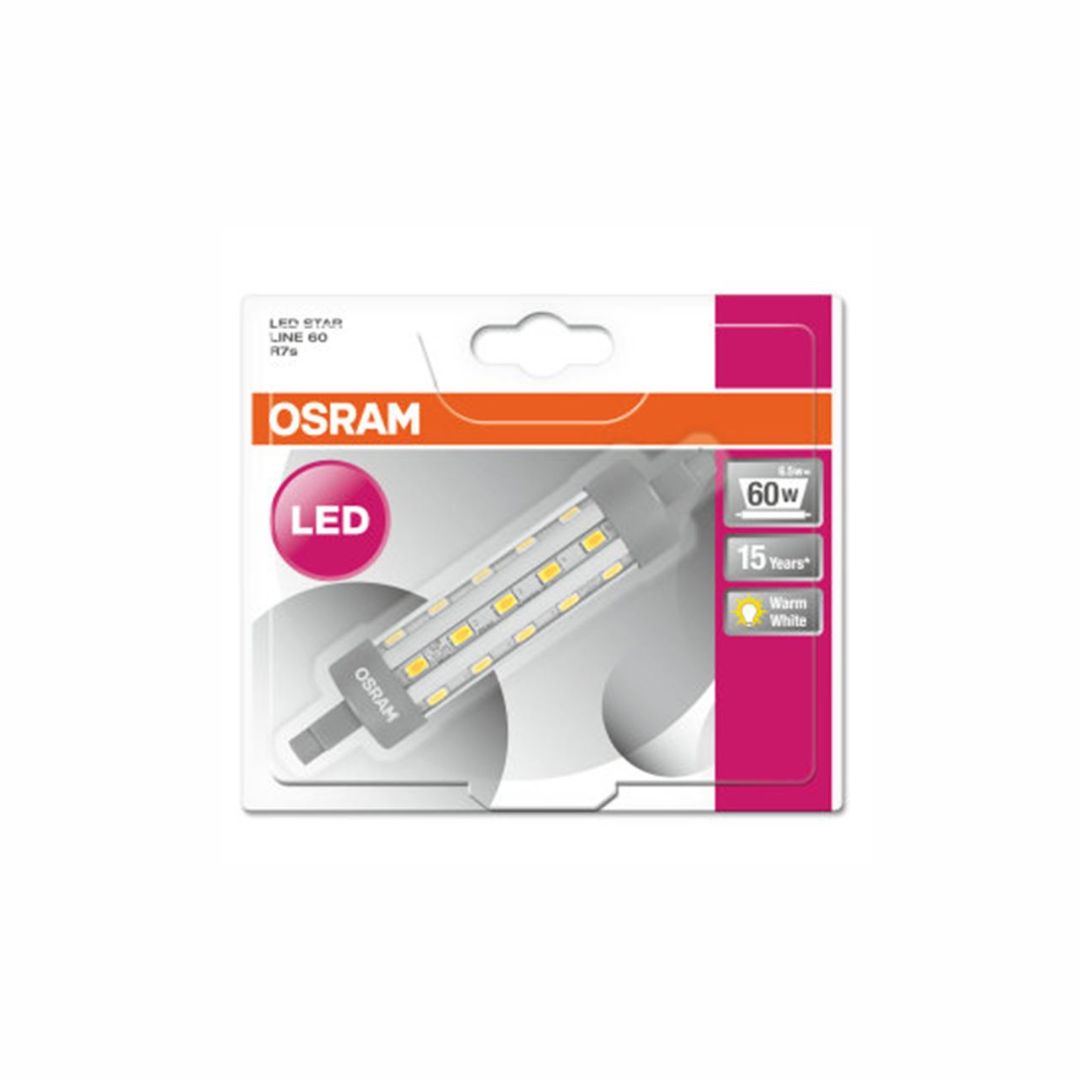

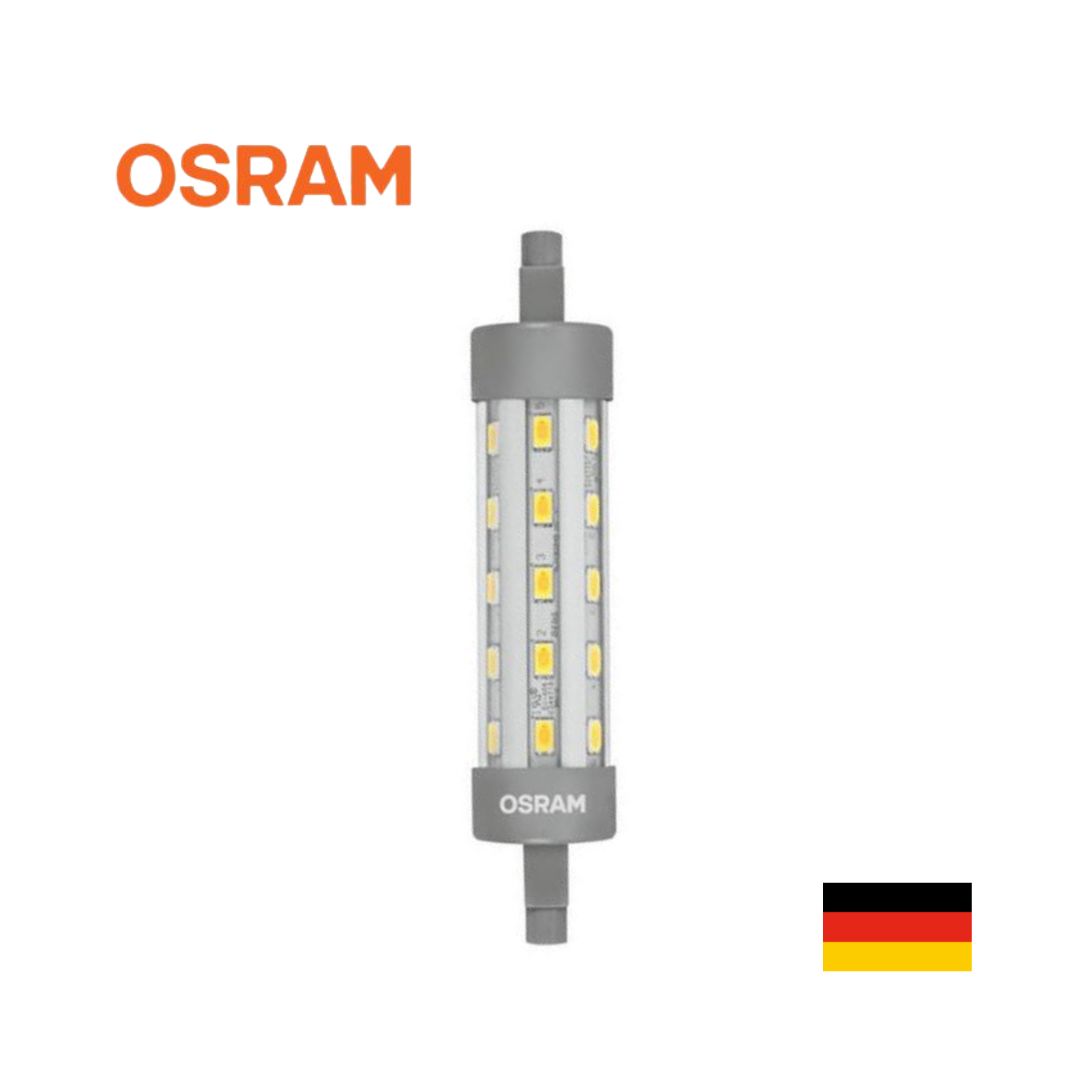

LED STAR LINE 118.0 mm 60 6.5 W/2700K R7s OSRAM

Product Benefits
– Long life up to 15,000 h
– Low energy consumption
– Three year warranty
– Good overall light output
– Suitable for most R7 luminaires thanks to eccentric base

Application Areas
– Hospitality
– Domestic applications
– Outdoor applications only in suitable luminaires

Product Features
– LED alternative to conventional R7 lamps
– Safety Tips
– To ensure full luminous efficacy and product life, it is recommended to remove any glass or covers from the luminaire.

SKU: LEDSLINE60 6,5W Categories: Brands, Lamp, Lamp and Tube, LED lamps, LED lamps R7S socket

Description
Reviews (0)

Electrical data

– Nominal power 6.50 W
– Nominal voltage 220… 240 V
– Operating frequency 50… 60 Hz
– Power factor λ > 0.50
– Equiv. Claimed conventional lamp power 60 W

Photometric data

– Nominal luminous flux 806 lm
– Main.fact. lumen at the end of the nominal service life 0.70
– Light color (designation) Warm white
– Color temperature 2700 K
– Luminous flux 806 lm
– Color rendering index Ra ≥80
– Standard deviation of color matching ≤6 sdcm
– Nominal color temperature 2700 K
– Color rendering index Ra ≥80

Light technical data

– Warm-up time (60%) <0.50 s
– Beam angle 300.00 °
– Start time <0.5 s

Dimensions and weights

– Total length 118.0 mm
– Diameter 24.0 mm
– External bulb T24
– Length 118.0 mm

Temperatures and operating conditions

– Ambient temperature range -20…+40 °C
– Maximum temperature at the test point tc 80 °C

Service life

– Nominal lamp life 15000 h
– Nominal lamp life 15000 h
– Number of switching cycles 100000
– Luminous flux maintenance at end of life 0.70

Additional product data

– Base (standard designation) R7s
– Mercury content 0.0 mg
– Mercury-free Yes
– Design / version Clear
– Show WEEE pictogram Yes

Capacities

– Dimmable No
